Compare wire-mesh, flat-belt and roller arrangements using product support, throughput, residence time and available space.
Drag to rotate · Typical structure; final configuration follows the product specification
PRODUCT MATRIX
01 / CONTINUOUS HEATING
02 / CONTINUOUS HEATING
03 / CONTINUOUS HEATING
STRUCTURE COMPARISON
A mesh belt, flat belt and roller bed have different support and cleaning requirements. Confirm the product base, carrier and process substances before choosing the transport system.
Swipe the table sideways on smaller screens.

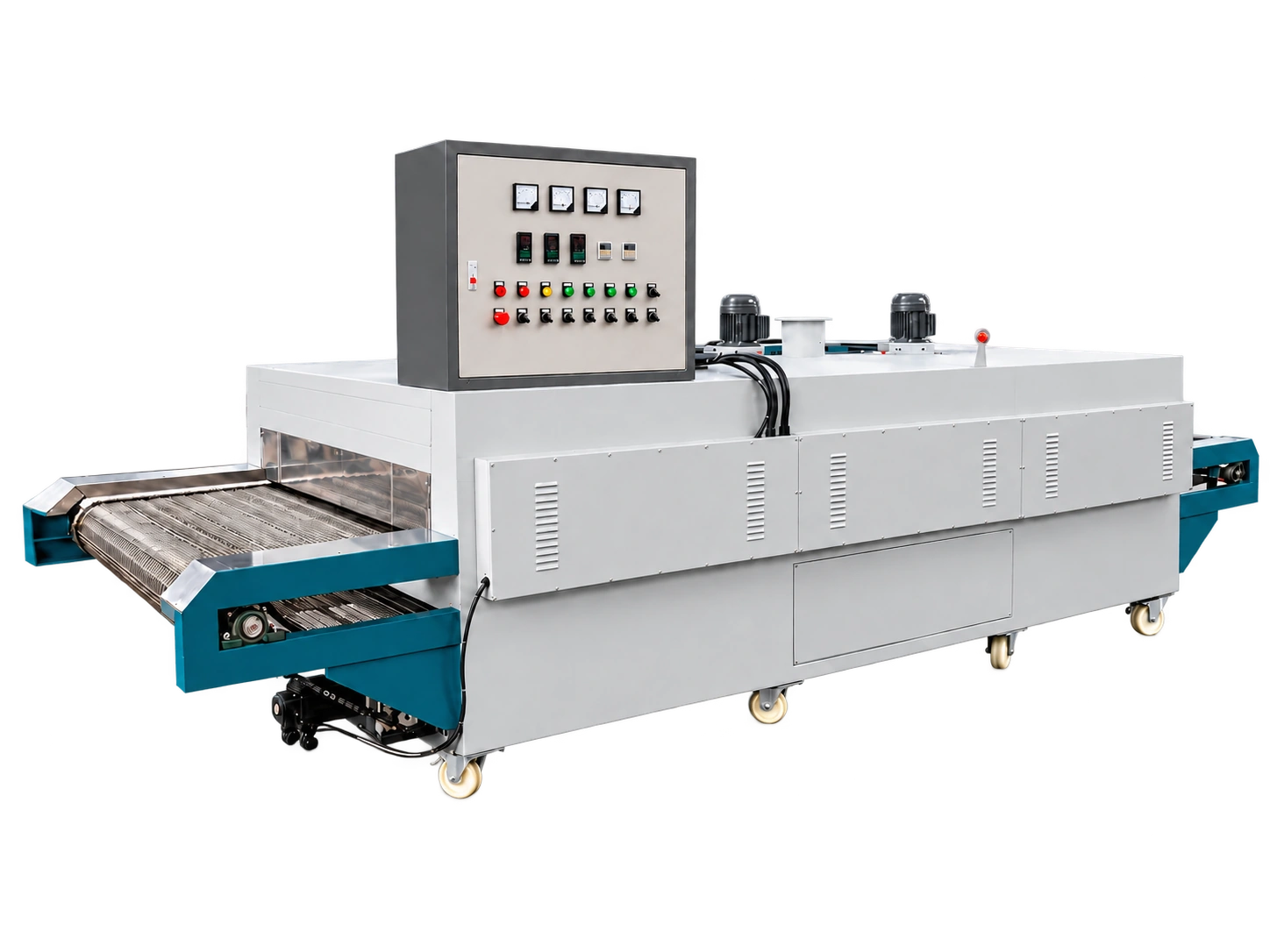

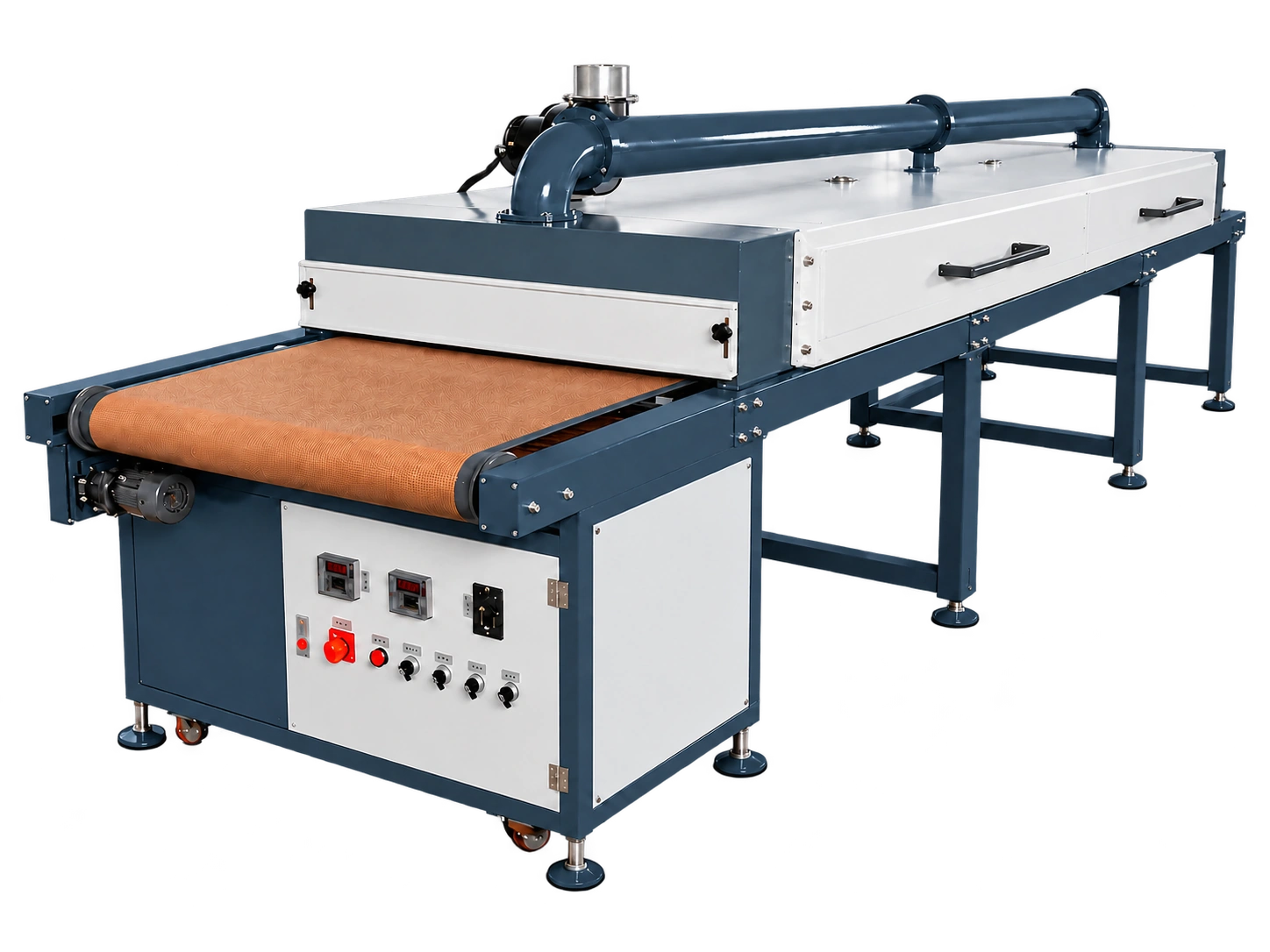

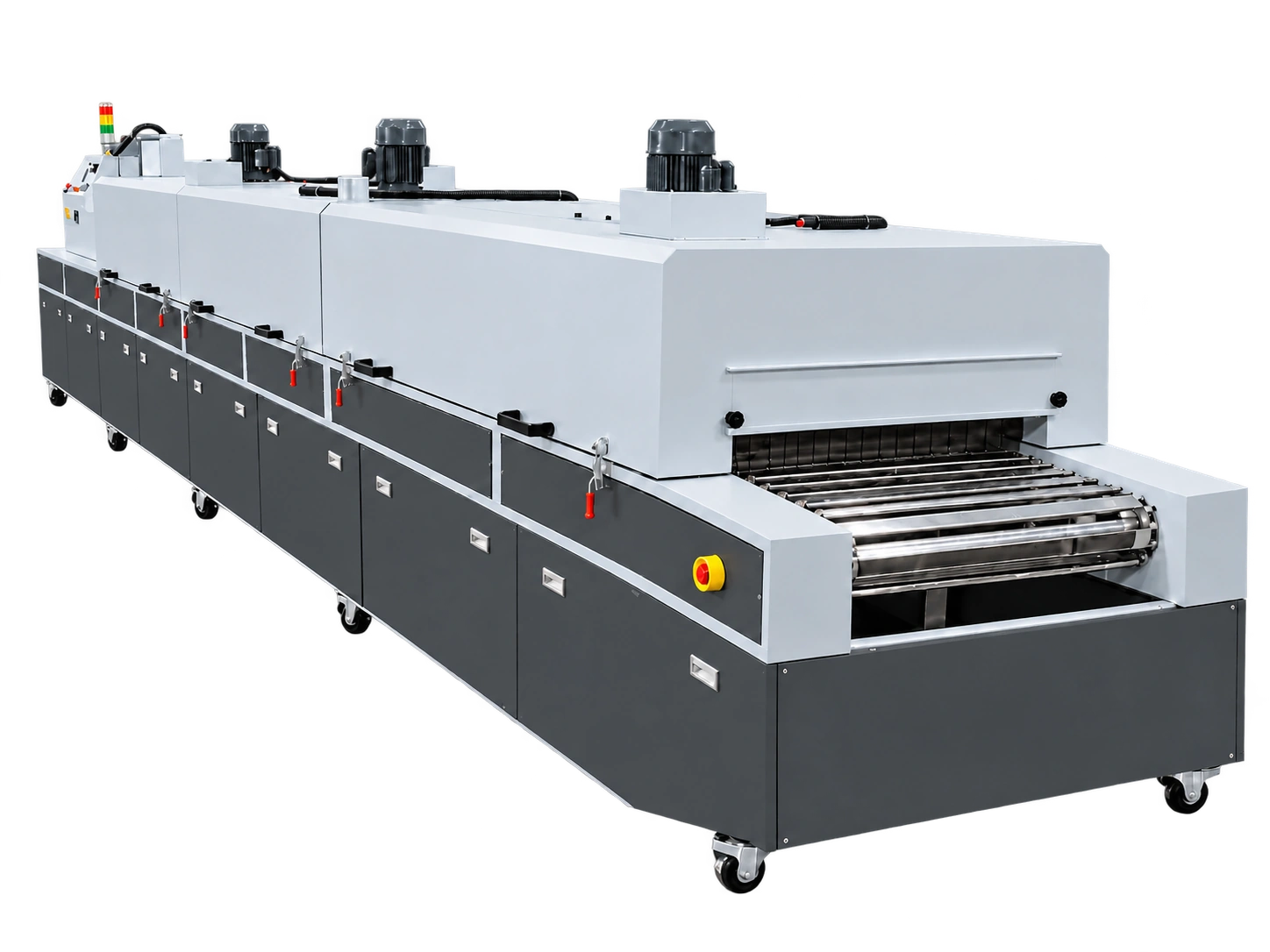

| Transport | Product/support conditions | Checks | Selection limits |
|---|---|---|---|
| Wire mesh | Parts or trays that suit mesh support and through-flow | Mesh opening, load, tracking, cleaning and contact marks | Check trays for small or soft parts and possible surface marking |
| Flat belt | Parts or carriers needing continuous support | Belt temperature rating, chemical compatibility, splice and cleaning | Confirm actual belt-contact temperature and process substances, not just chamber setpoint |
| Rollers | Flat-bottom parts or trays that can span the roller pitch | Pitch, load, synchronization and transfers | Small or flexible parts may need carriers; outside dimensions alone are insufficient |
CONTROL & PROTECTION
Define speed feedback, blockage or drive-fault detection, heat inhibition on a stop, and handling of products remaining in the hot zone.
Check their permissives separately. A command to run a fan is not proof of airflow. Solvent release needs its own assessment.
Review zone sensors, independent high-limit cut-offs and alarm records. Define air temperature, product temperature and protective limits separately.
Specify responses to emergency stop, power loss and downstream stops, including recovery conditions. Fan, conveyor and heater sequences depend on the equipment design.
SELECTION LOGIC
Part dimensions, mass, underside and tray or fixture details determine support and clearance requirements.
Specify parts or mass per hour, lane count, product spacing and upstream and downstream cycle times.
Separate air setpoints from required part temperatures. State the criteria for heat-up, soak, drying or curing.
Residence time = heated path length ÷ conveyor speed. This is travel time through the heated path, not necessarily soak time after the part reaches temperature.
Review heating zones, circulation, moisture and volatile release against the process. Appearance alone does not establish the heating method or hazardous-process suitability.
Confirm loading height, total footprint, utilities, cooling sections, service clearance and interfaces to adjacent equipment.
EQUIPMENT IN APPLICATION

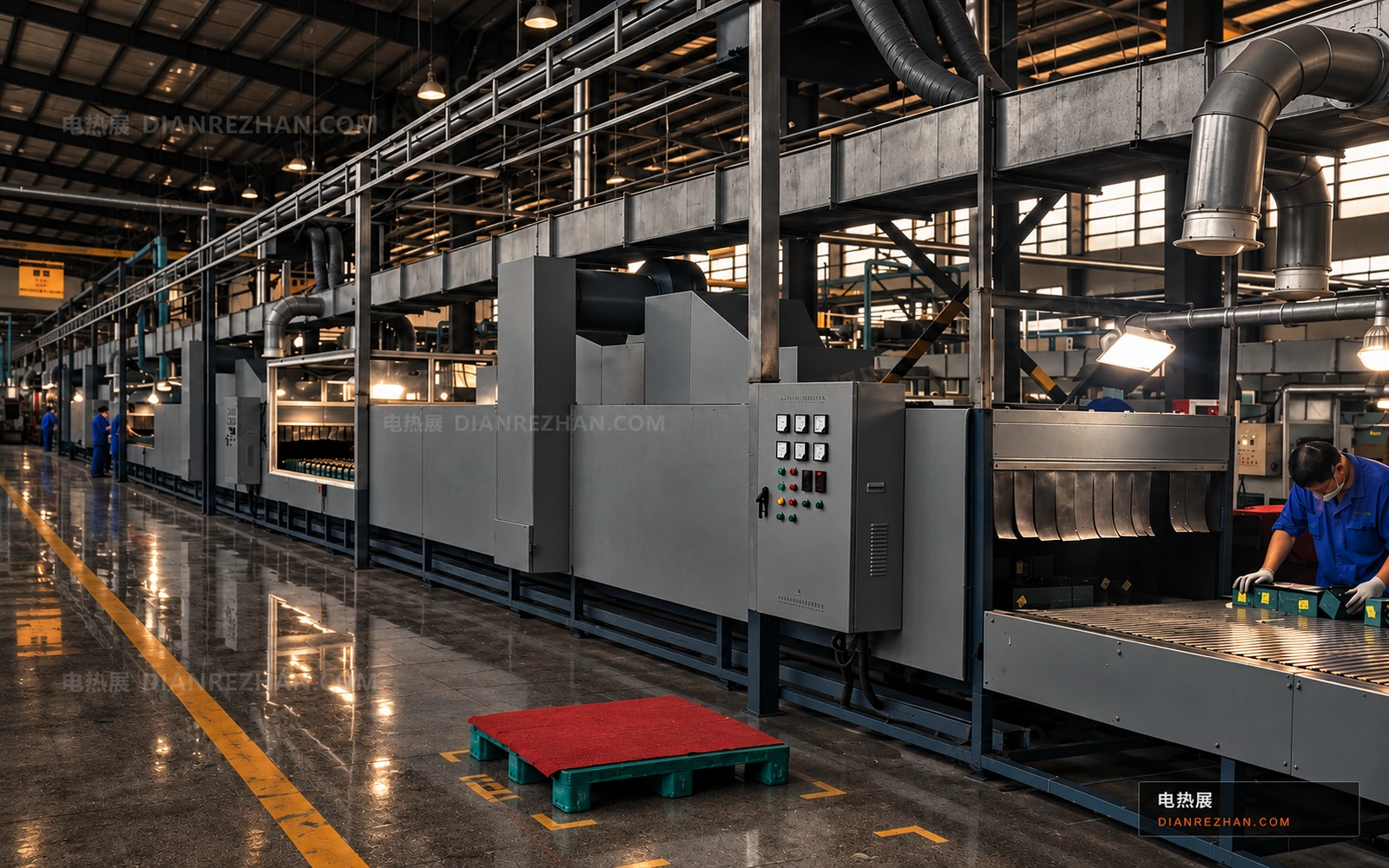

A chain-plate conveyor integrated with continuous drying equipment. Check load support, exhaust and production cycle.

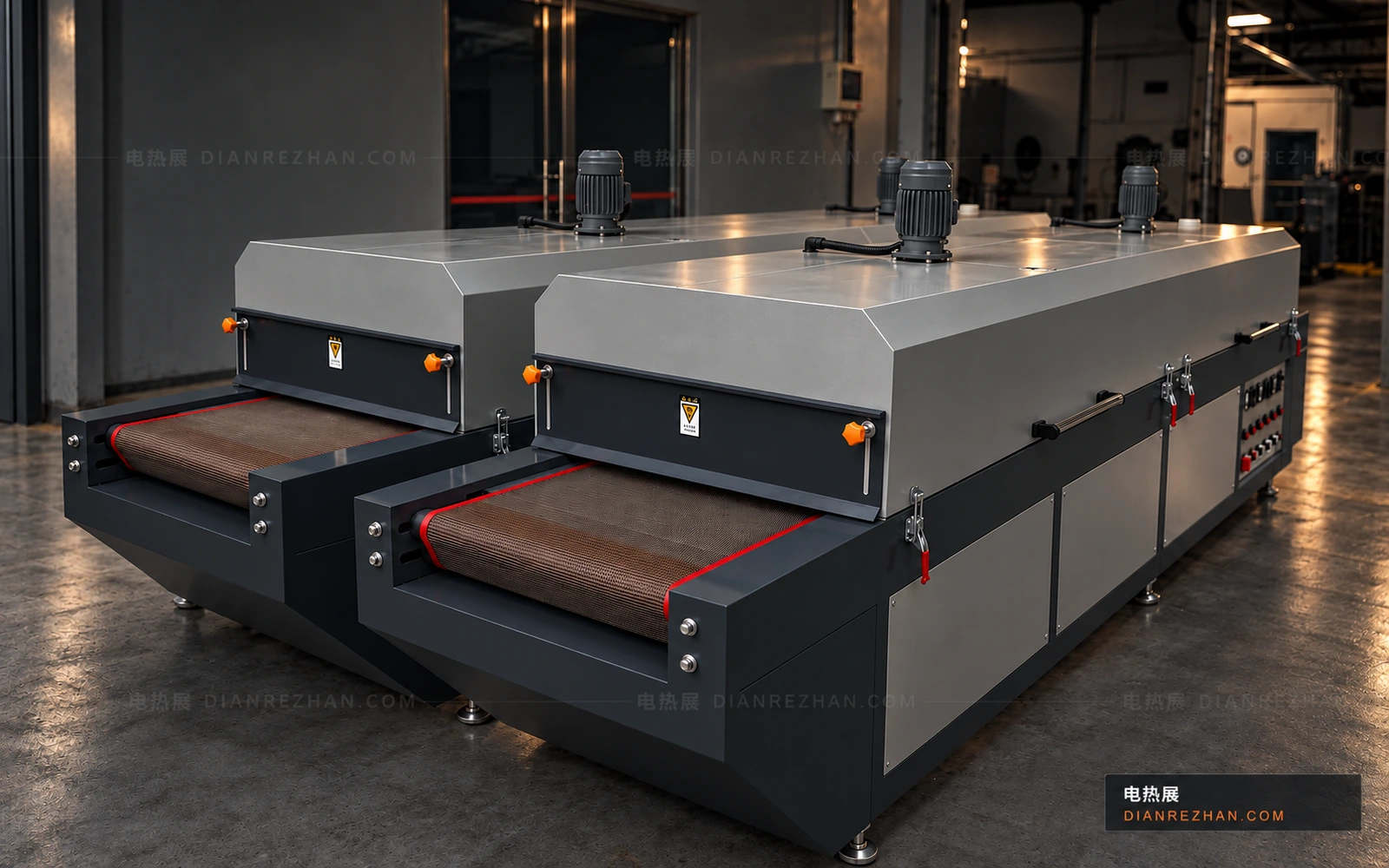

The mesh belt, heated enclosure and control panel arrangement. Check mesh openings, product size and belt width.

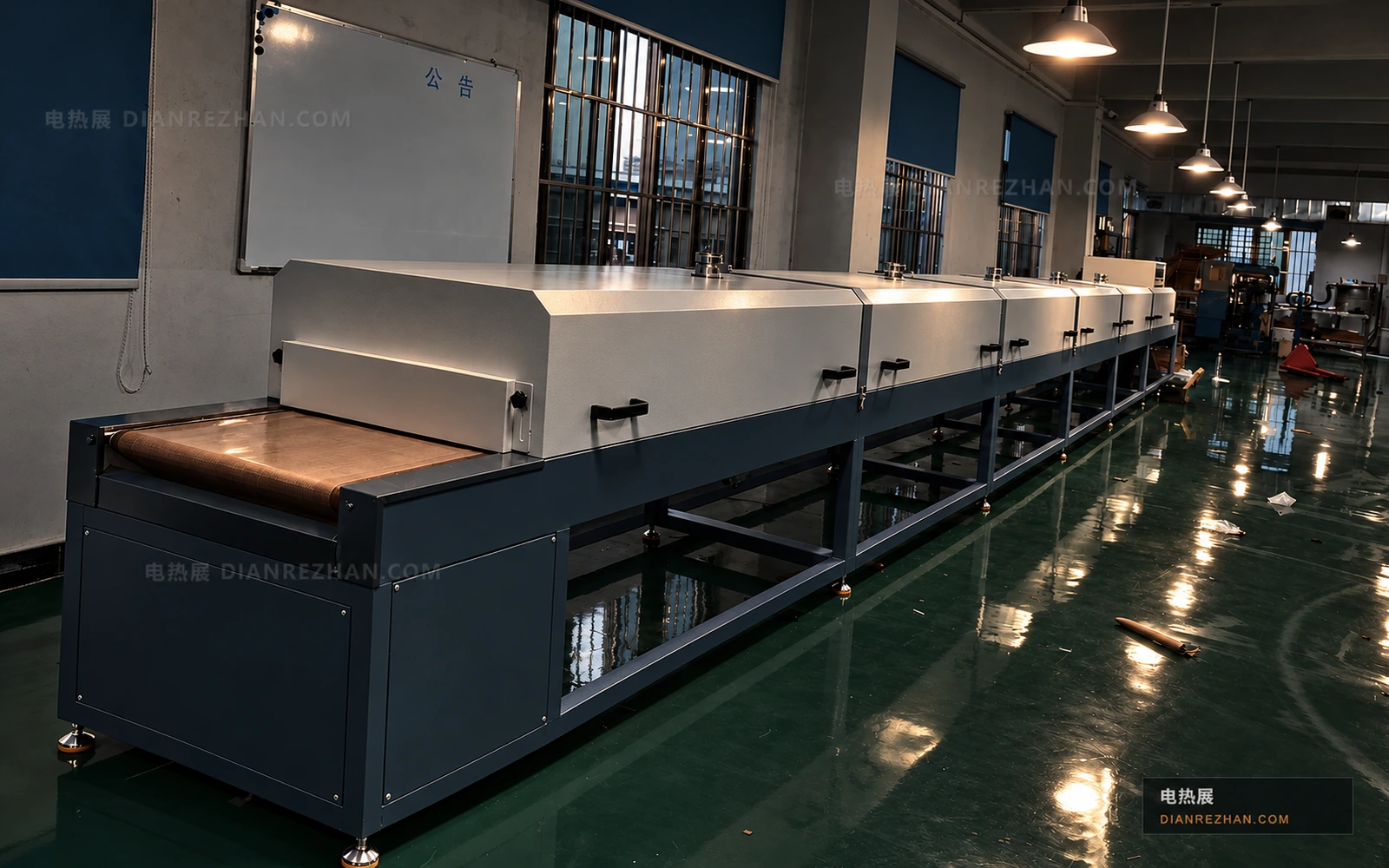

A continuous flat belt and segmented enclosure, specified around process time, belt material and effective heated length.

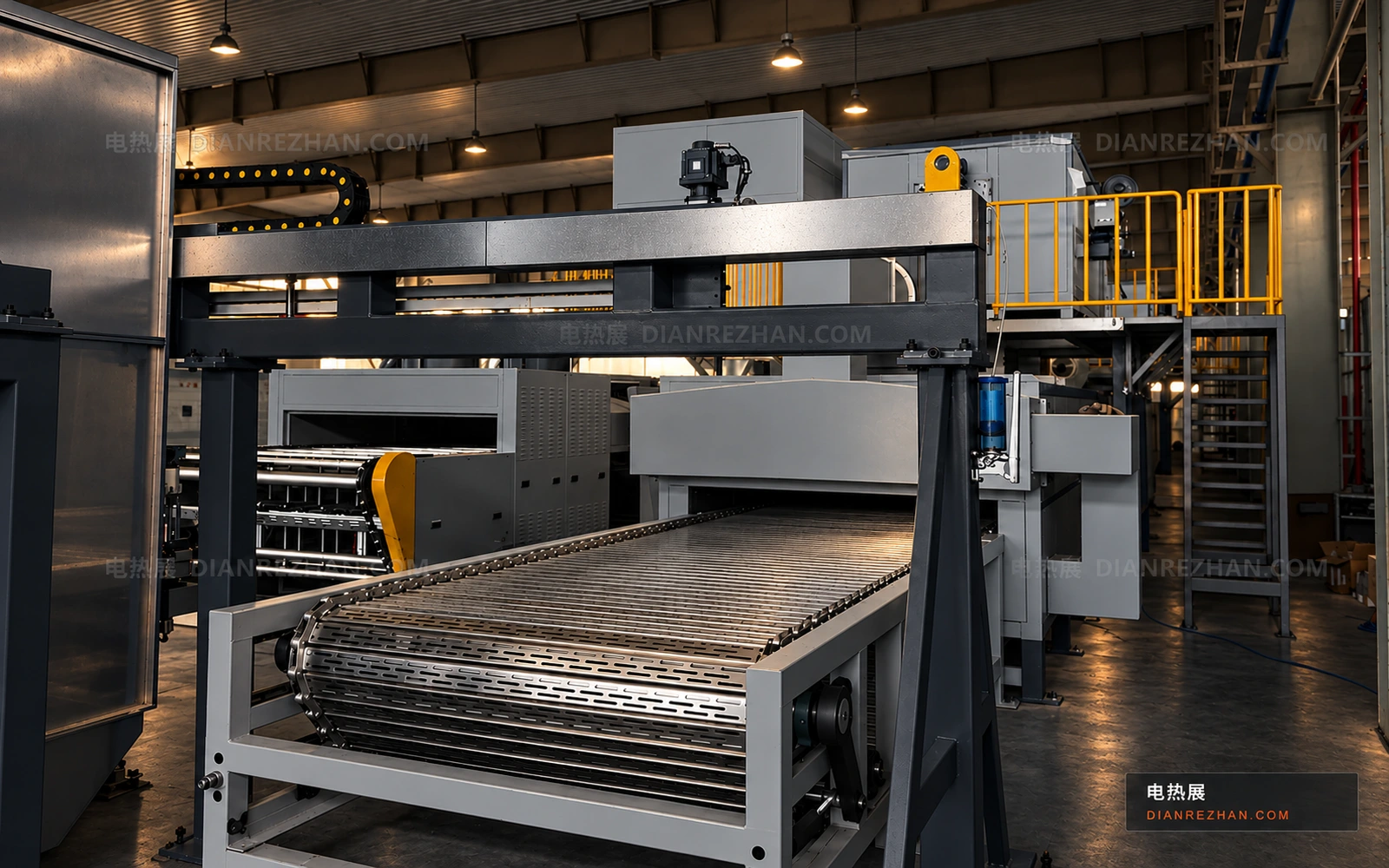

Roller support and adjacent transfer stations. Check the product base, mass and support pitch.
Site references with edited paint colors and presentation. Final equipment configuration follows the agreed specification.
03 / PROCESS SEQUENCE
Set product spacing, lane count and carrier arrangement for stable loading.
Arrange the heating sections around the required part temperature profile.
Validate drying, curing or soak requirements against line speed and heated path.
Match cooling, unloading and the next operation to the product temperature limit.
TECHNICAL PARAMETERS
| Product and loading | Material, dimensions, mass, fixtures and loading pattern |
|---|---|
| Temperature and time | Initial and target product temperature, heat-up and soak time |
| Capacity and cycle | Hourly throughput, pitch, line speed and effective heated length |
| Airflow and exhaust | Recirculation, exhaust, moisture or volatile release and protective measures |
| Site conditions | Available power, footprint, loading access and service clearances |
These are specification inputs, not universal product ratings. Installed power also needs to cover enclosure heat-up, exhaust and thermal losses.
Convert speed, residence time and heated travel length before discussing the layout.
Open process calculator →KNOWLEDGE BASE
Start with stable product support, temperature and contact requirements. Check mesh openings against part size, flat-belt material against the process, and roller pitch against the product underside. Slat, chain and dedicated-carrier arrangements can also be reviewed for other loads.
A higher speed reduces residence time in a fixed heated path. Validate the part temperature profile and process result before changing speed, while also checking product spacing, lane count and adjacent line capacity.
No. The installed length may also include loading and discharge extensions, transitions, cooling and drive sections. Specify the heated path separately from the overall installation footprint.
Not necessarily. Use the required part temperature, moisture level, cure result or other acceptance criterion. Air temperature and residence time are process inputs, not substitutes for product acceptance.
